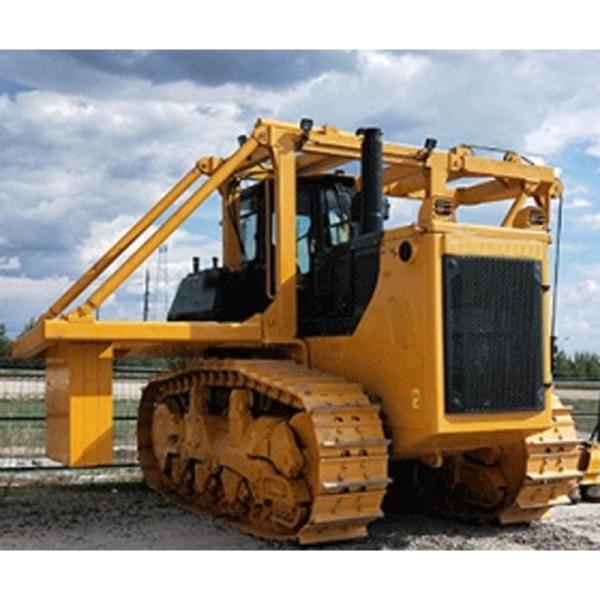

Cummins Engine Crawler Conveyor Pipeline Loading And Unloading Equipment
Introduction
The product is equipped with a hydraulic clamping type transfer head and related safety devices, mainly used for lateral transfer operations of belt conveyors in open-pit mining construction, and a bulldozer working device interface is reserved, which can be switched to bulldozer use at any time.
| Equipment model | PYS70-2 |
| Engine model | Cummins NTA855-C360 |
| Engine rated power/speed | 235/2000 kW/rpm |
| Operating weight | 41000 kg |
| Overall dimensions (length, width, height) | 5780×6850×3950 mm |
| Maximum moving weight | 16000 kg |
| Maximum lifting height | 300 mm |
| Maximum moving distance | 1000 mm |
| Suitable for steel rail specifications | 50～75(GB 2585) kg/m |
| Quantity of counterweights × Weight | 3×1550 kg |
| Walking speed | Forward 1st gear | 3.6 |
| Forward 2st gear | 6.6 |
| Forward 3st gear | 11.5 |
| Reverse 1st gear | 4.4 |
| Reverse 2st gear | 7.8 |
| Reverse 3st gear | 13.5 |
| Operation mode | Handle operation |
| Moving head clamping indication | Optional |
| Mobile head surveillance camera | Optional |
| Switchable bulldozer | 320 horsepower bulldozer |
Feature
1) The balance beam is connected to the trolley floating through rubber damping elements, reducing the impact load transmitted to the chassis system, further improving the equipment's passing performance on uneven terrain and adaptability to terrain during relocation.
2) Strong adaptability: able to adapt to working in environments with temperatures ranging from -40 ℃ to+60 ℃, altitudes below 3600 meters, and high dust levels.
3) Humanized operating space: the new hexahedron cab has a large internal space and a wide view. The driver's seat and armrest designed according to ergonomics can be easily adjusted up, down, forward and backward. The speed change, steering and throttle control are placed on the left, and the operating device is placed on the right. The operation process is more convenient and flexible.
About Suhigo
- As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
- Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
